Visualisation of My Personal Google Data (2): My exercise routine

This post is a part of a series that demonstrates how to gain insights from personal Google data. Its purpose is to show how to visualize personal movement data.

psych
dplyr
plotly
Author
Affiliation

Ali Emre Karagül

TOBB ETU- University of Economics & Technology

Published

December 11, 2022

Mailchimp Subscription Modal

Introduction to the series: “Visualisation of My Personal Google Data”

If you give permission to Google to store your location data, they will keep them in their databases forever. You can also allow them to store it for a while and then ask them delete it. They will directly do so.

What makes this study a fun project is its being very personal. I decided to analyze my personal data in August, 2022. Therefore, I granted many new permissions to Google along with many previously granted permissions. They keep them in various formats including .csv, .json, .mbox etc. When you query for your personal data, they provide it within a couple of days depending on the size of the data you queried.

Usually, I provide the readers with the data in my posts. However, in this series, the data are very personal and so I will not.

Introduction: “My exercise routine”

In this part of the series, we will investigate my personal location data. We will visualize the spots I visited within a period of time. This way, I personally will gain insights about how boring my days are :)

The R packages that we use in this post are as follows:

Understand the Data & Pre-processing

Let’s start the procedure by reading the data into R. The head() function provides us with the first six observations of the data frame. There are 16 variables some of which are filled with many many NAs. such as Biking.duration..ms. The reason for that is pretty simple; I do not ride around. The variables are mostly numeric, yet Dategives us information about the date of the observation. The variable Running.duration..ms. has many NAs too. But it also has some observations because I run only a few days a week. I will use this variable to filter my data later.

daily_metrics<-read.csv("Daily activity metrics.csv",sep=",", header = TRUE)
head(daily_metrics)
        Date Move.Minutes.count Calories..kcal. Distance..m. Heart.Points
1 2021-05-16                 77        687.6241     4090.742           40
2 2021-05-17                 79       2016.4717     3978.947           13
3 2021-05-18                 31       1752.2711     2267.061           21
4 2021-05-19                140       2201.5012     9714.473           74
5 2021-05-20                 50       1842.7984     2618.885           16
6 2021-05-21                 63       1902.6128     4571.006           43
  Heart.Minutes Average.speed..m.s. Max.speed..m.s. Min.speed..m.s. Step.count
1            40           0.9532187        1.017549       0.8888889       7654
2            13           0.3553377        1.328190       0.2391036       6161
3            21           0.4802522        1.643308       0.2550294       3450
4            74           0.5155224        1.711053       0.2550294      14000
5            16           0.3804749        1.516558       0.2588491       4078
6            43           0.5348663        1.492037       0.2656556       6768
  Average.weight..kg. Max.weight..kg. Min.weight..kg. Biking.duration..ms.
1                  80              80              80                   NA
2                  NA              NA              NA                   NA
3                  NA              NA              NA                   NA
4                  NA              NA              NA                   NA
5                  NA              NA              NA                   NA
6                  NA              NA              NA                   NA
  Walking.duration..ms. Running.duration..ms.
1               4664026                    NA
2               4692410                424601
3               1610096                    NA
4               8268890                 93935
5               2994689                    NA
6               3909532                    NA

As the data contains some variables with decimal numbers, I would love to round them to increase meaningfulness. The mutate_if function combined with is.numeric gives me the opportunity to pick only the numeric variables to round.

daily_metrics <- daily_metrics%>% mutate_if(is.numeric, round, digits=2)

So far so good. Now I want to select the variables that I want to visualize in my project and filter my data accordingly. Let’s see the variable names:

colnames(daily_metrics)
 [1] "Date"                  "Move.Minutes.count"    "Calories..kcal."
 [4] "Distance..m."          "Heart.Points"          "Heart.Minutes"
 [7] "Average.speed..m.s."   "Max.speed..m.s."       "Min.speed..m.s."
[10] "Step.count"            "Average.weight..kg."   "Max.weight..kg."
[13] "Min.weight..kg."       "Biking.duration..ms."  "Walking.duration..ms."
[16] "Running.duration..ms."

In this project, I will use following variables: date, Move.Minutes.count,Calories..kcal.,Distance..m.,Average.speed..m.s.,Biking.duration..ms.,Step.caoun and walking.duration.ms.. Let’s use subset function to get rid of the unnecessary part of the data.

daily_metrics <- subset(daily_metrics, select = -c(5,6,8,9,14, 13,12,11) ) #idk why so randomly ordered numbers
head(daily_metrics)
        Date Move.Minutes.count Calories..kcal. Distance..m.
1 2021-05-16                 77          687.62      4090.74
2 2021-05-17                 79         2016.47      3978.95
3 2021-05-18                 31         1752.27      2267.06
4 2021-05-19                140         2201.50      9714.47
5 2021-05-20                 50         1842.80      2618.88
6 2021-05-21                 63         1902.61      4571.01
  Average.speed..m.s. Step.count Walking.duration..ms. Running.duration..ms.
1                0.95       7654               4664026                    NA
2                0.36       6161               4692410                424601
3                0.48       3450               1610096                    NA
4                0.52      14000               8268890                 93935
5                0.38       4078               2994689                    NA
6                0.53       6768               3909532                    NA

As mentioned before, I would like to work on the days that I run. That’s why I will also get rid of observations that do not contain any running data and then my data will be ready for the visualization.

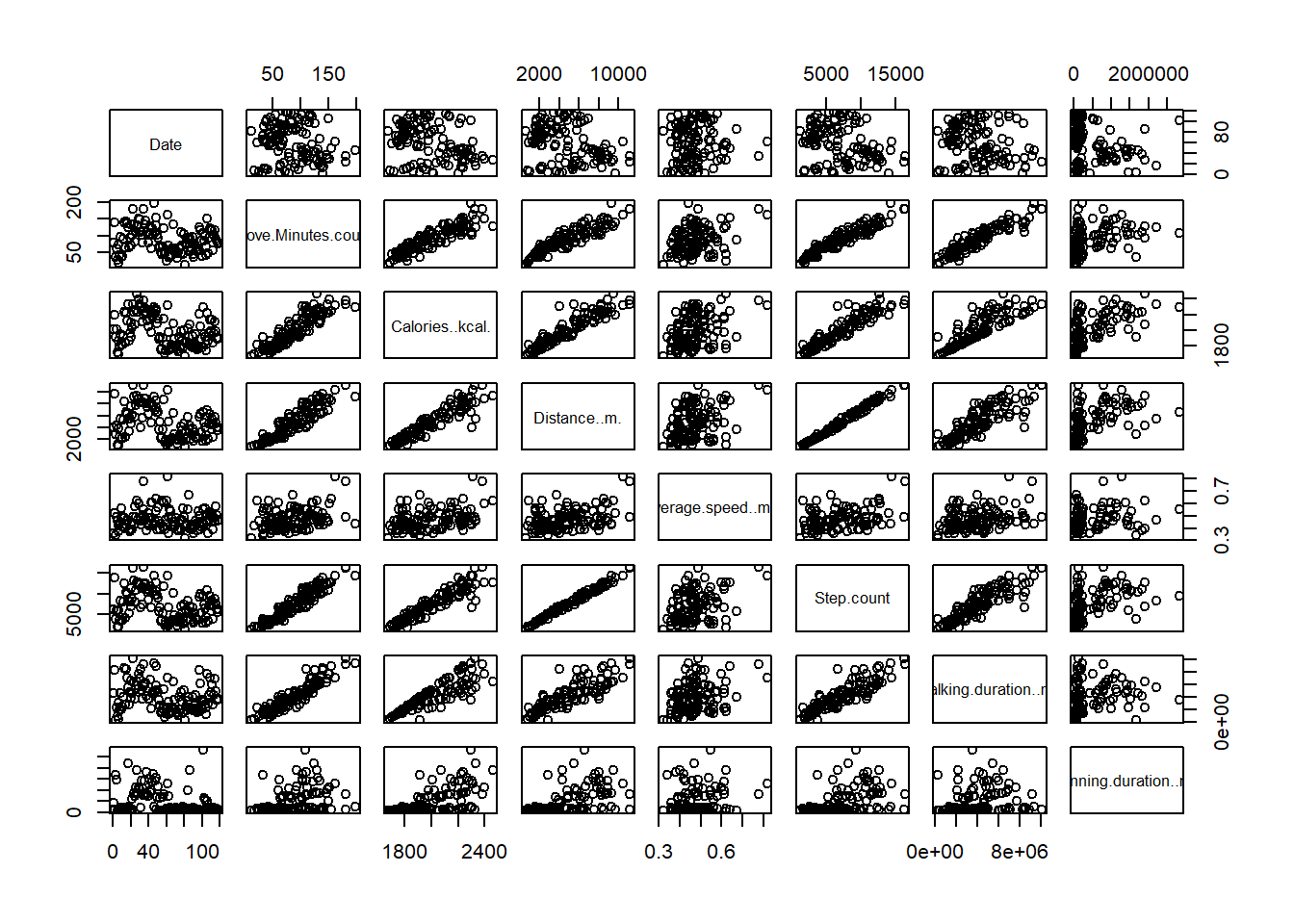

Finally, let’s get the scatter plots of whatever we have left to see a bigger picture. There are some outliers; you will easily recognize some bubles sitting alone in their plots. However, they don’t look like they need further investigation.

data_for_plotting<-daily_metrics[!is.na(daily_metrics$Running.duration..ms.),]
plot(data_for_plotting)

Data Visualization

plotly is an amazing alternative to ggplot2. Today we will work on this package with our data. Our first chart contains information about the number of steps I took each day that I ran from May 2021 to November 2022.

fig<-plotly::plot_ly(data=data_for_plotting, type ="scatter", mode="lines+markers",
                     y=data_for_plotting$Step.count, x=~Date)
fig

When you hover over the chart you might see the date and the number of steps that I took. For instance on 12th and 28th of August, I took more than 16k steps.

Now let’s add two dimensions to our chart: the duration of walking and running in a day using the addtrace function. Also layout function helps us name our plot.

########################
# walking VS runing duration bars
#########################
ay<- list(
  tickfont =list(color ="red"),
  overlaying = "y",
  side= "right",
  title= "<b> secondary</b> y axis"
)


fig<-plotly::plot_ly()
fig<- fig %>%
  add_trace(type ="bar",
            y =data_for_plotting$Walking.duration..ms.,
            x=data_for_plotting$Date,
            name="walking duration (ms)"
  )
fig<- fig %>% add_trace (type ="scatter", mode="lines+markers" , #yaxis="y2",
                         y=data_for_plotting$Running.duration..ms.,
                         x=data_for_plotting$Date ,
                         name="running duration (ms)")


fig <- fig %>% layout(
  title="two axis",
  yaxis2 = ay,
  xaxis = list( title= "Days"),
  yaxis = list( title= "Time I moved in miliseconds")
)
fig

This chart brings another aspect of my exercise routine. The days I ran in the last year, I walked a lot more than I ran, obviously. One exception to that might be 25th of July when I almost walked and ran same amount of time.

Now, besides time, let’s add another dimension of distance. This chart will have another y axis. We need to let plotly know that we will use another dimension. overlaying = "y" argument will do it. Also, we use another addtrace function to add the second y axis properties. yaxis="y2" argument will link this trace to our new dimension. y2 here is defined by plotly as default setting.

ay<- list(
  tickfont =list(color ="red"),
  overlaying = "y",
  side= "right",
  title= "<b> Distance I walked in meters </b>"
)


fig<-plotly::plot_ly()

fig<- fig %>%
  add_trace(y =data_for_plotting$Move.Minutes.count,
            x=data_for_plotting$Date,
            name="movemnt(min.)",
            type ="bar" )


fig<- fig %>% add_trace (y=data_for_plotting$Distance..m.,
                         x=data_for_plotting$Date ,
                         name="distance(m.)", yaxis="y2",
                         type ="scatter", mode="lines+markers")

fig <- fig %>% layout(
  title="My movement VS distance  <b>in 2022</b>",
  yaxis2 = ay,
  xaxis = list( title= "<b>Days</b>"),
  yaxis = list( title= "<b> Time I moved in minutes </b> ")
)
fig

As the final result, you can see that on the first y axis there are the number of minutes (from 0 to 200) when I was in a moving state. On the other side, we have the distance I walked or run in meters (from 0 to 10k). For example; on sixth of Auust in 2022, I walked almost 7k meters in 150 minutes.

As a final step, let’s see the calories I burnt during that time. Another addtrace would help us draw the line for the calories that I burnt throughout these days:

fig<-plotly::plot_ly()

fig<- fig %>%
  add_trace(y =data_for_plotting$Step.count,
            x=data_for_plotting$Date,
            name="Steps ",
            type ="scatter", mode="lines")

fig<- fig %>% add_trace (y=data_for_plotting$Distance..m.,
                         x=data_for_plotting$Date ,
                         name="distance",
                         type ="bar" )


fig<- fig %>% add_trace (y=data_for_plotting$Calories..kcal.,
                         x=data_for_plotting$Date ,
                         name="calories",
                         type ="scatter", mode="lines")



fig <- fig %>% layout(
  title=" <b>My movement in 2022</b>",
  xaxis = list( title= "<b>Days</b>"),
  yaxis = list( title= "<b> steps(n)</b> / <b> distance(m)</b> / <b> calories(kcal) </b> ")
)
fig

The reason why there are not many diversity in the calories that I burnt might be because of two reasons: either the calories are not counted correctly by Google, which I believe is the case, or as the charts contain information for only the days that I run, I spent similar amounts of calories. Either way, we can see that the calories don’t change much even though took much more steps and spent more time moving on some days than some other days.

Conclusion

The plotly package have many useful embedded features. Especially the hovering property of the charts make it much more appealing easily. Another beautiful feature of plotly is that you can use certain HTML tags on your charts. For example here in the last chart, we used <b> bolt </b>tag in order for making our titles stand out in the layout function.

Finally I must also mention that plotly have some features to create different types of graphs, animations and many other. Their website for R worths a visit.
